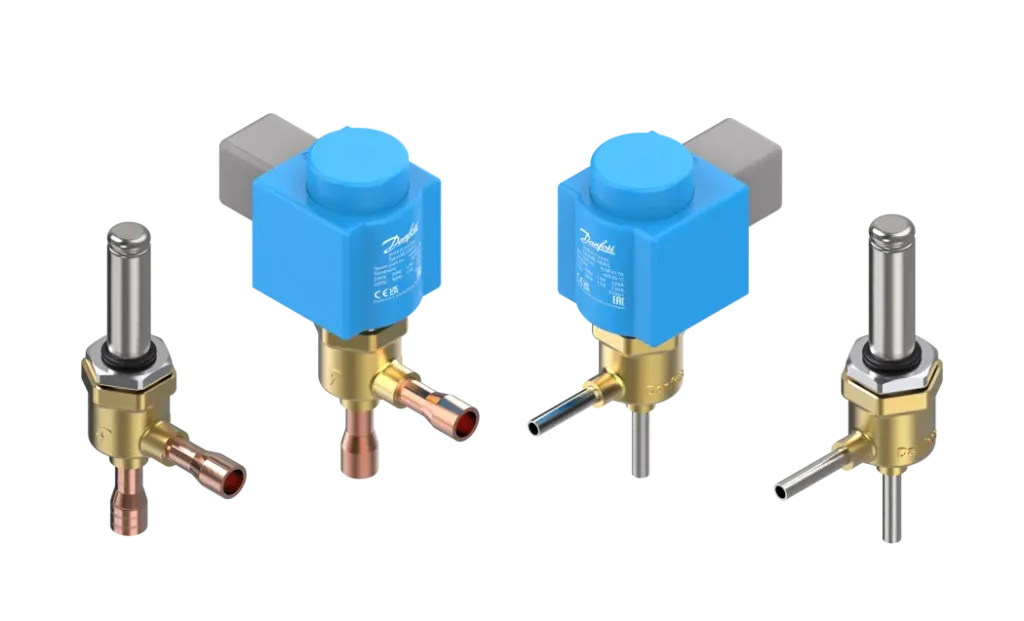

EVT high pressure range is a direct or servo operated valve specially designed for CO2transcritical refrigeration systems.
EVT high pressure range is a direct or servo operated solenoid valve specially designed to fit into CO2 transcritical refrigeration systems. They can be applied in following applications:
- EVT 1.2 direct operated for oil return, pressure equalization/relief control, high pressure hot gas bypass/dump and hot gas defrost.
- EVT 2.0 and 3.0 servo operated for high pressure hot gas bypass/dump and hot gas defrost application.
EVT valves and coils are sold separately
Features and benefits:
Direct and servo operated mini piston solenoid valve with compact construction
Simple and fast mounting of Danfoss Clip-on coil
Designed for media temperature up to 150°C
Working pressure up to 140 bar with 110 bar MOPD
Copper solder connections for brazing
Stainless steel connections for Swagelok fittings
Body material in ECO brass (lead free < 0.1%)
Robust design ensures long lifetime
Supplied in version normally closed (NC)
In accordance with RoHS II, REACH, LVD and PED
