For Industrial Refrigeration and transcritical CO₂ systems
SVL Flexline™ platform is expanded to 140 bar MWP to meet an increasing demand of large manual valves in industrial design for large scale R744 transcritical CO₂ systems.
The SVL-140 bar manual valve range for Industrial CO₂ Trans-critical Systems is based on
the successful modular Standard SVL platform. The same flexibility, simplicity and efficiency
are features offered in this series.
The valves are available in angle and straight connection. It is designed for favorable flow conditions and the FIA-140B can be fitted with the existing range of pleated filter inserts from 50 to 500 microns. Strainer inserts are shared with other FIA valves in the SVL platform.
The valves are especially applicable in medium and high-pressure part of the CO₂ transcritical system:
- Upstream to HP valve
- Upstream to By-pass valve
- Upstream to MT compressors
- Upstream to Hot gas defrost valves
Feature and Benefits:
SVA-140B with balanced piston design providing smooth low torque opening of valve at high differential pressure
Straight and angle version valve body
Arrow for flow direction on valve body

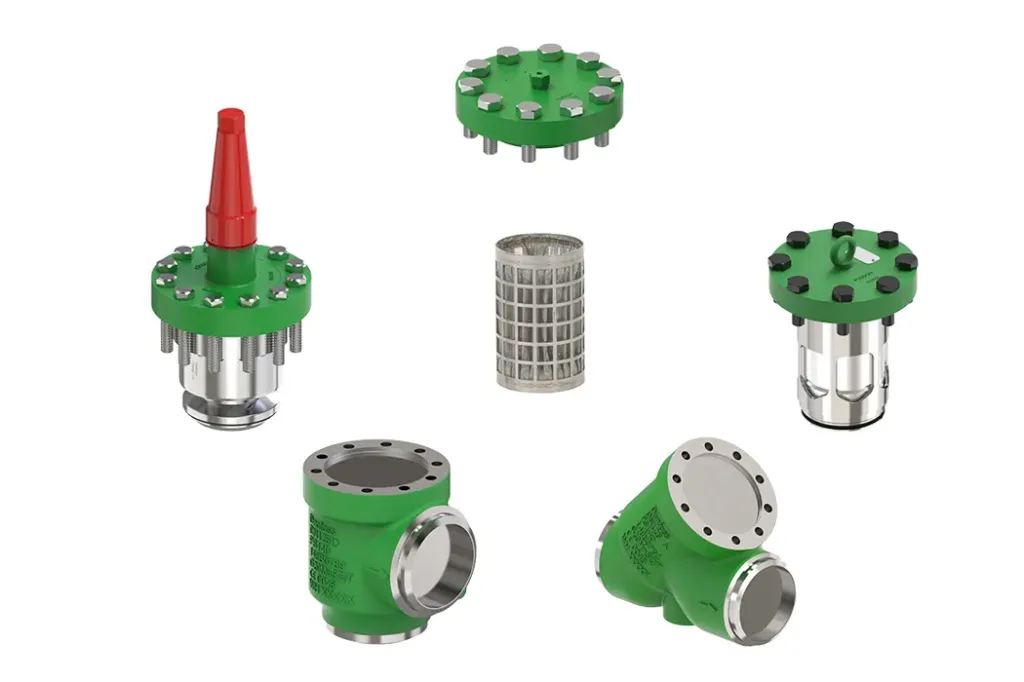

Replaceable top part or filter insert
Buttweld and brazing connections
Max. working pressure: 140 bar (2030 psi)
