0 – 3,000 Hz Open Loop
0.25 kW – 7.5 kW (0.33 hp – 10 hp)
200 V / 400 V

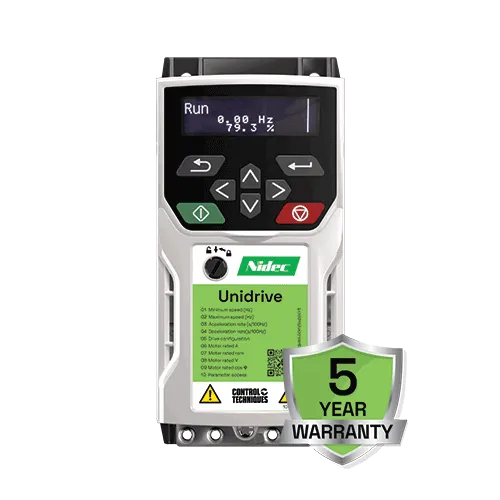

Unidrive HS30 is designed for applications that require cost effective integration into safety systems and incorporates dual Safe Torque Off and advanced Rotor Flux Control (RFC-A) of open loop induction motors.
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
- HS30 has integrated dual STO inputs for SIL3, PLe conformity, eliminating the need for external safety components
Improve throughput with advanced open-loop motor control algorithms
- Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers
- 180% motor overload suitable for heavy industrial machinery applications
Flexible system integration with SI communications options
- HS30's SI interface enables integration with a wide range of available industry standard fieldbuses and I/O
Install and configure quickly and easily
- Simple fixed LED keypad
- Useful parameter guide located on the front of the drive
- Use Unidrive M Connect or an SD card with the AI-Backup adaptor to clone and transfer parameter sets
- DIN rail mounting is supported below 1.5 kW
