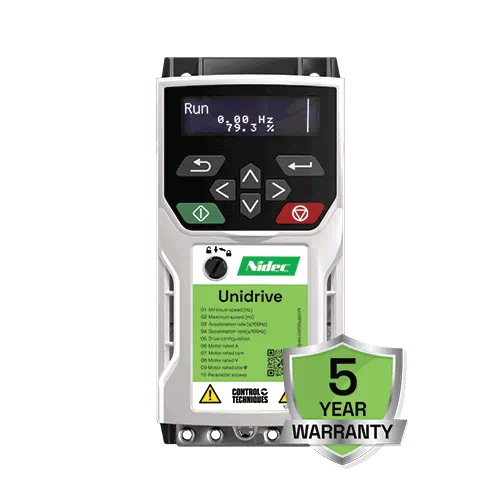

Unidrive M400

Optimised throughput and energy efficiency in industrial applications

Unidrive M400 is exceptional at combining the ease of use of our general purpose range with the capabilities of our high performance Unidrive M Series.

Add in an impressive I/O count, dual Safe Torque Off (STO) and integrated PLC, all of which contribute to making the M400 an extremely capable drive.

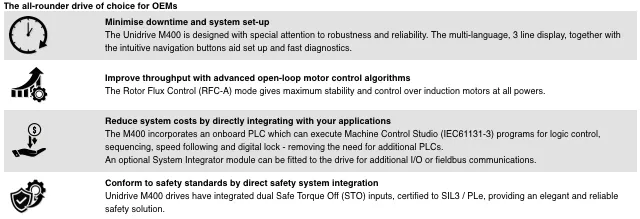

Features

Minimize downtime and system set-up time with advanced keypad options

• Informative, multi-language, 3 line display aids set up and provides diagnostic information
• 4 navigation buttons facilitate intuitive navigation and programming
• Keypad options available:
  • CI-Keypad - Drive mounted LCD keypad
  • Remote IP66 keypad - rapid panel mount (1 x 32mm Ø hole)
  • No Keypad - Control/programming performed by PC or fieldbus

Reduced system costs by directly integrating with applications

• M400 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic and sequencing with real-time tasks - removing the need for additional PLCs
• Fit an SI module to add a fieldbus communications option or additional I/O

Improve throughput with advanced open loop motor control algorithms

• Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers
• 180% motor overload suitable for heavy industrial machinery applications
• Precise frequency following is possible from an encoder or frequency/direction inputs

Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems

• M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components
