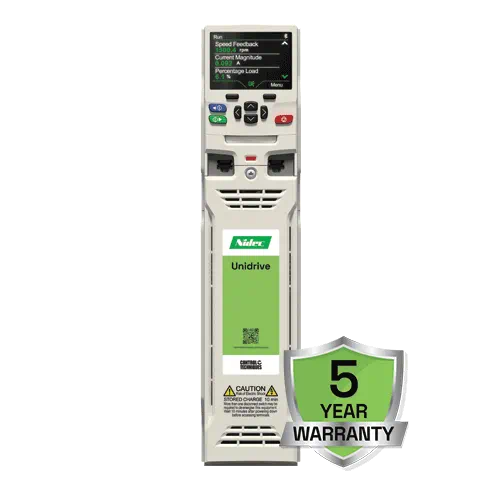

Unidrive M600
High Performance AC Drive
High performance drive for open-loop control of induction, permanent-magnet, and hybrid PM motors
The M600 is the perfect choice for applications that require high performance open-loop control of induction or permanent magnet motors.
A comprehensive range of option modules are available for easy integration into all major fieldbus ecosystems and to tailor the drive to any application need.
High power modular drives
Unidrive M’s modular offering gives you never before seen flexibility in building compact, reliable high-power solutions. Paralleled together, Unidrive M can control asynchronous and synchronous motors up to 2.8 MW (4,200 hp). At the top of the modular drives range, the Frame 12 is a 500 kW (700 hp) single module that delivers unmatched power density, while keeping both footprint and system costs to a minimum. The Unidrive M modules can be paralleled together into a wide range of flexible solutions to solve all system needs, including Active Front End and multi-pulse rectifier configurations.
Efficient system build
Designing and building a high power drive cubicle takes immense engineering knowhow. Most people don’t have that expertise in-house, but we do. And we’ve put it all into our DFS freestanding drives. The cubicle system is designed to make the most of our high power modular drives, benefiting the applications that need them the most. The results are maximum energy efficiency in an ingress protected package. Our cubicle drives come pre-assembled, easy to set up, with all necessary system components included. Furthermore, we can ship your Freestanding drive to you with a very short lead time, saving weeks on typical industry standards.
Functional Safety
All Unidrive M drives have integrated dual Safe Torque Off (STO) inputs, certified to SIL3 / PLe, providing an elegant and reliable safety solution.
The addition of an MiS210 safety option extends the built-in STO with the ability to safely monitor and/or restrict the scope of motion.
Safety functions include: STO, SBC, SOS, SS1, SS2, SLS, SSM, SLA, SDI, SLP & SES
For maximum flexibility in the safety system architecture, the modules support both wired and network safety connections: CIP-Safety on EtherNet/IP and Safety over EtherCAT (FSoE).
Features
Enhanced throughput with high-performance open-loop control of induction and permanent magnet motors
- Advanced Rotor Flux Control (RFC) algorithm gives maximum stability and control of induction and permanent magnet motors
- 200% motor overload suitable for heavy industrial machinery applications
Reduce system costs by directly integrating with applications
- M600 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic control, sequencing, speed following and digital lock - removing the need for additional PLCs
- Fit up to three SI modules to add safe motion, speed feedback, additional I/O and fieldbus communications
